E15
1.

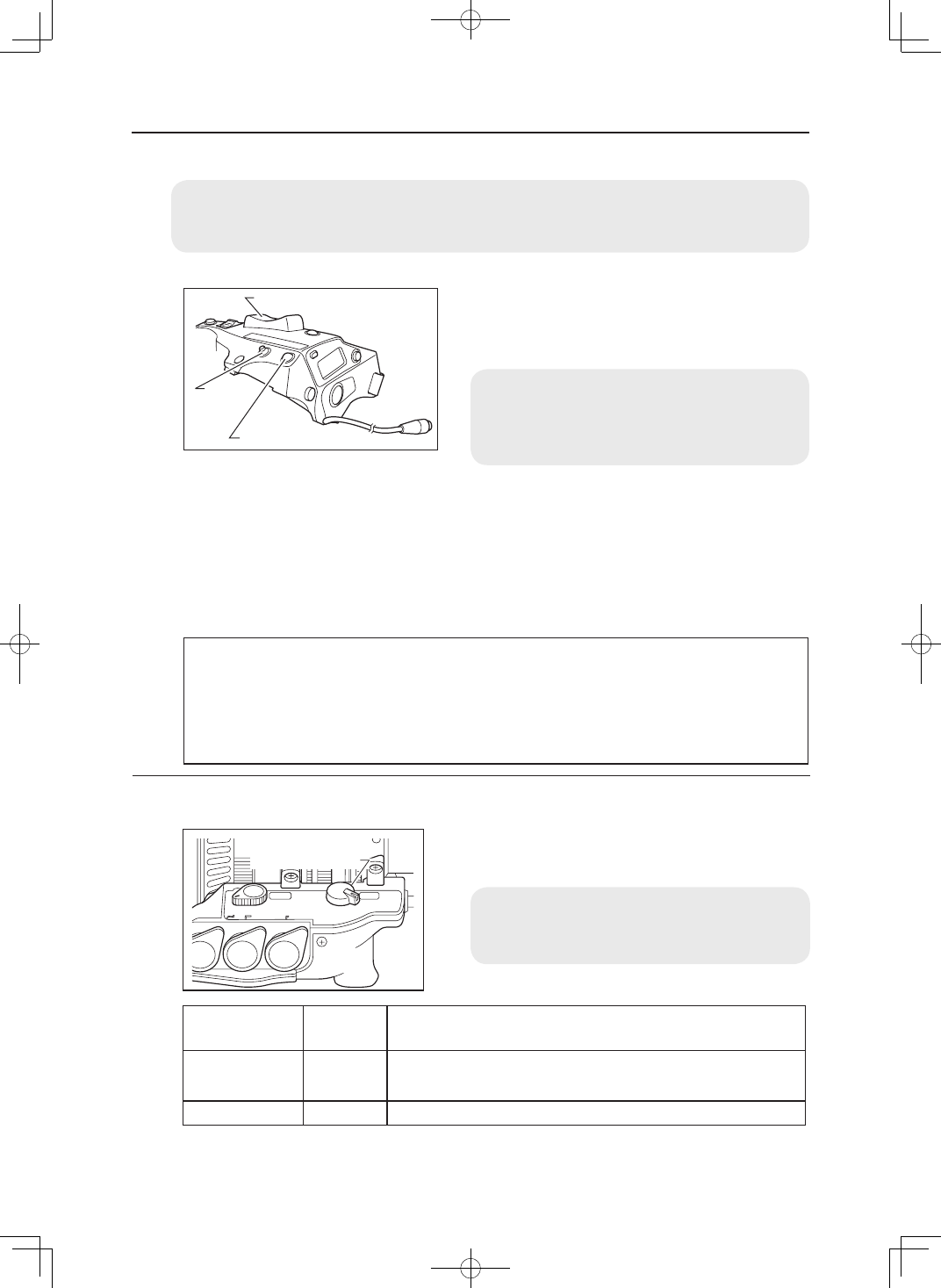

Setting the framing memory position
Zoom (and focus) to the position that you want to store, while
holding this zoom (and zoom focus) position, press the
Fr1P
switch while holding down the MEMO switch.
This framing memory position is different from the
shuttle memory position (Refer to “5-1-5. Shuttle-Shot
Function”
). The stored zoom position remains in the
memory, even after the power is turned off.
Framing Preset [Zoom] / [Focus] / [Z+F] Setting
The following figure below is shown as an example. Actual state of the switch may look different if the
function is allocated to the different switch.
• Fr1P function--------Assigned to the AUX switch by factory default.
2.
Moving to the framing memory position
Once the Fr1P switch is pressed, the zoom starts to move toward the framing memory position at the preset
speed and stops at the framing memory position. When the zoom reaches the framing memory position, it stops
and stays there.
3.
Canceling the movement to the framing memory position or switching to other zoom operation
During movement to the framing memory position, the movement can be canceled and/or switched to other
zoom operation by any of the following operations.
[Zoom Framing Preset]
• Press the Fr1P switch again.
• Perform zoom operation with the zoom rocker
seesaw.
• Perform zoom operation with the Shtl
switch.
Zoom Rocker Seesaw
"Fr1P" Switch
"MEMO"
Switch
5-1-8 Clutchless Zoom
(
Only models with clutchless zoom mechanism
)
Set the zoom operation change-over knob to the SERVO
position to activate the clutchless zoom mechanism.
Zoom operation
change-over knob
Clutchless
zoom
mechanism
Operation
SERVO
ON
Setting used when both servo and manual operations are needed
Without operating a clutch, you can switch between the servo zoom and
manual zoom.
MANU.
OFF
Set to MANU. when using only the manual zoom.
ZOOM
FOCUS
Zoom Operation
Change-over Knob
REMOTE1
REMOTE2/
VIRTUAL
REMOTE3
MANU. SERVO
MANU. SERVO
[Focus Framing Preset]
[Zoom, Focus Framing Preset]
• Operate a connected focus demand. Movement
to the memory position stops, and movement to
the operating position of the focus demand takes
place.
5 OPERATION
NOTE
The lens may be damaged if manual zoom operation is
performed during the servo zoom operation.
