E6
①
Iris Gain Adjusting Trimmer
②
Instant Auto-Iris Switch
③
Iris Operation Mode Change-over Switch
④
Zoom Rocker Seesaw
⑤
RET Switch (Video Return Switch)
⑥
Memo Switch (Memory Switch)
⑦
AUX Swich
⑧
Flange Back Lock Screw
⑨
Flange Back Adjusting Ring
⑩
Locating Pin
⑪
Macro Button
⑫
Macro Ring
⑬
Extender Lever
NOTE) Excluding KASE S type lens.
⑭
Iris Ring
⑮
Zoom Ring
⑯
Zoom Lever
⑰
Focus Ring
⑱
Focus Servo/Manual Change-over Knob
NOTE) IASE S, IASE-C S and KASE S type lenses only.
⑲
Zoom Servo/Manual Change-over Knob
⑳
Max. Zoom Speed Adjusting Volume
㉑
VTR Switch
㉒
Remote Connectors (20-pin)
NOTE) Virtual output port is Connector
★
only.
Use these connectors to connect the control accessory
(equipped with a 20 pin connector) for zooming or focusing.
Connector
★
is also used to connect to the interface of
such as virtual system. It can output each positioning signal
of zoom, focus, and iris.
㉓
Hood Lock Knob
①
Display Switch
Used to turn the display ON/OFF.
②
Display
It turns off if left for 2 minutes without operation.
③
Control key
Used to move the cursor up/down/left/right. Press the
center to confirm.
8
17
1
3
4
2
7
5
6
10
11
12
13
16
14
15
9

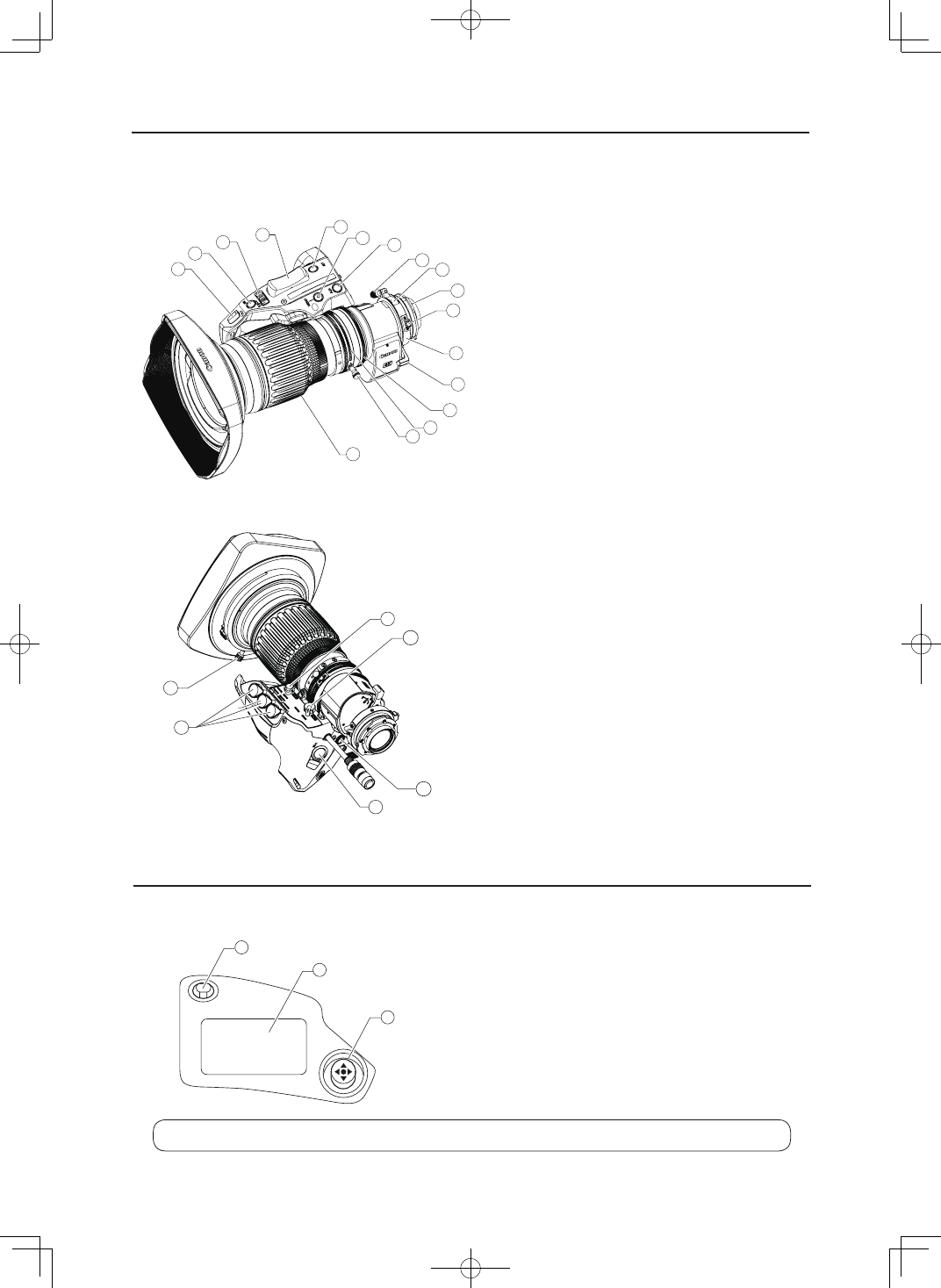

1 NOMENCLATURE
ۻ
21
18
19
20
22
23
DISPLAY
1
3
2
Information Display (Digital Drive Unit)
1 NOMENCLATURE
For the operation of the digital drive unit, refer to "Information Display Manual" in the
supplied
CD-ROM.
