E18

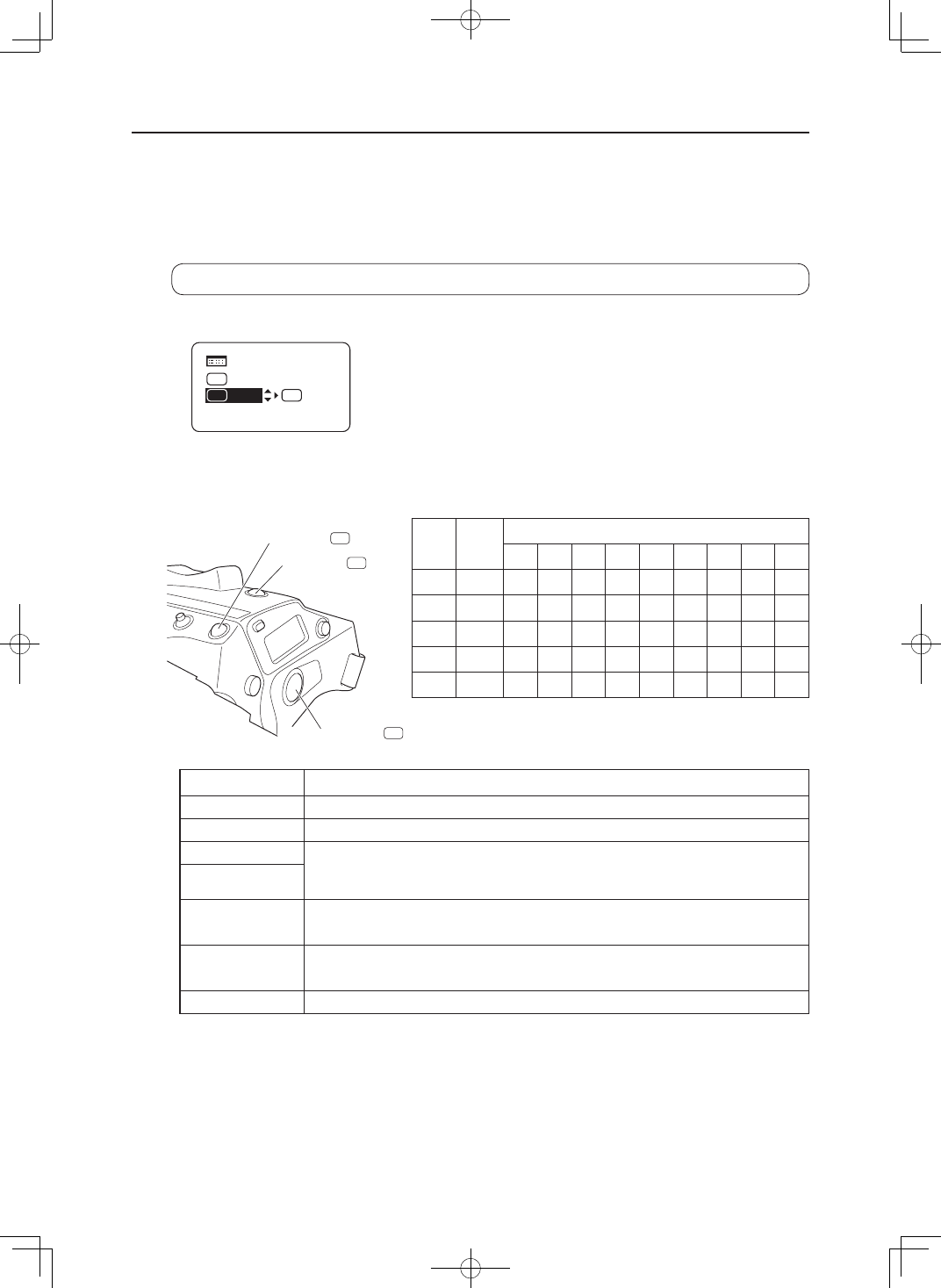

5-6. SWITCH OPERATIONS
Functions can be assigned to the five switches: the VTR, RET, AUX switches, or AUX1 and AUX2
switches on the information display. VTR, RET, Shtl, and Fr1P functions are assigned respectively by
default.The following steps explain how to assign the functions to the switches in basic mode.
For details, refer to "Information Display Manual" in the supplied CD-ROM.
1
Press the DISPLAY switch to turn on the display.
2
After using the control key to select the name of the switch key to which
the function is to be allocated, press the Set key. The name of the
switch and the default or the previous setting now blink on the display.
3
Press the left or right key until the function to be changed to appears
on the display.
4
Press the Set key. This completes the setting.
Switch
Default
value
Functions
Fr1P Fr1F Fr2P Fr2F Sped
Shtl
NON VTR
RET
①
V
VTR
●
●
●
●
●
●
●
●
②
R
RET
●
●
●
●
●
●
●
●
③
A
Fr1P
●
●
●
●
●
●
●
●
●
④
A1
Shtl
●
●
●
●
●
●
●
●
●
⑤
A2
Fr1P
●
●
●
●
●
●
●
●
●
“
•
”
indicates a combination of an assignable function and a switch.
(4) and (5) are AUX1 and AUX2 switches on the zoom demand.
Switch name
Description
VTR
Start/stop VTR operation.
RET
Hold down to view the main-line video on the view finder.
Fr1P, Fr2P
Press to move to the stored zoom/focus position.
One position can be stored/called for Fr1P and Fr1F, and another for Fr2P and Fr2F.
Fr1F, Fr2F
Sped
Press to move in the stored zoom direction (toward the telephoto end or the widest
angle end) at the stored zoom speed.
Shtl
Press to move to the stored zoom position at the maximum speed. Release to return
to the previous zoom position at the maximum speed.
NON
No function
[Trk]OFF
Shtl
Fr1P
A 1
A2
MENU IG:50
Fr1P
A
[I-Tq] H
[Z.M.]
RET switch
VTR switch
AUX switch
V
R
A
5 OPERATION
