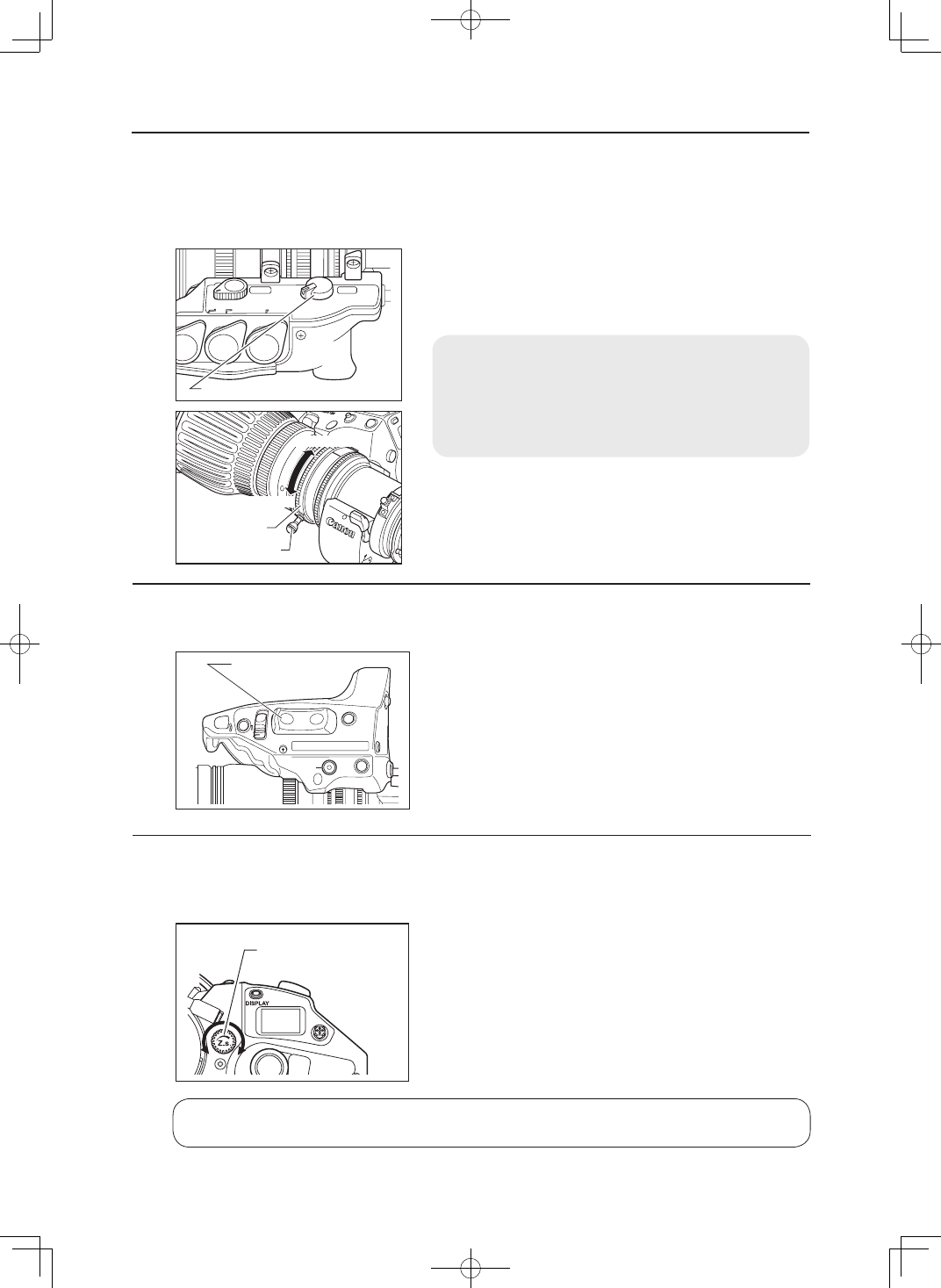

Страница 43: 1-1. manual zoom operation, 1-3. maximum zoom speed adjustment, Max. zoom speed adjusting volume, Zoom operation change-over knob
E11
1
Set the zoom operation change-over knob at the bottom of the
lens drive unit to MANU. position.
2
Turn the zoom ring (or zoom lever) to perform zoom operation.
NOTE
The zoom operation change-over knob must be set to the MANU.
position before performing manual zoom operations.
The lens may be damaged if manual zoom operations are forcibly
performed with the knob at the SERVO position.
5-1-2. Servo Zoom Operation
Zoom operation can be performed by driving the built-in motor in the lens.
5 OPERATION
5-1. ZOOM OPERATION
5-1-1. Manual Zoom Operation
ZOOM
FOCUS
REMOTE1
REMOTE2/
VIRTUAL
REMOTE3
MANU. SERVO
MANU. SERVO
Zoom Operation Change-over Knob
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ڦ
ft
m
ڦ
ڦ
ڦ
ڦ
ڦ
1x
2x
Toward Tele end
Toward Wide end
Zoom Lever
Zoom Ring
1
Set the zoom operation change-over knob to SERVO position.
2
Press the zoom rocker seesaw to perform zoom operation.
Zoom speed changes by the depth of the switch being pressed.
The deeper the switch is pressed the faster the zoom speed.
AM
RE
T
IRIS
T
W
ࣜࢫືస࣮ࣔࢻ
MEMO
AUX
Zoom Rocker Seesaw
5-1-3. Maximum Zoom Speed Adjustment
The maximum speed of zoom when the zoom rocker seesaw is pressed can be adjusted with the max.
zoom speed adjusting volume.
Max. Zoom Speed
Adjusting Volume
5 OPERATION
The adjustment and the setting can also be made on the information display. Refer to "Information
Display Manual" in the supplied CD-ROM.
