Автомобильная охранная система
HYUNDAI H-SS91
5
РУССКИЙ

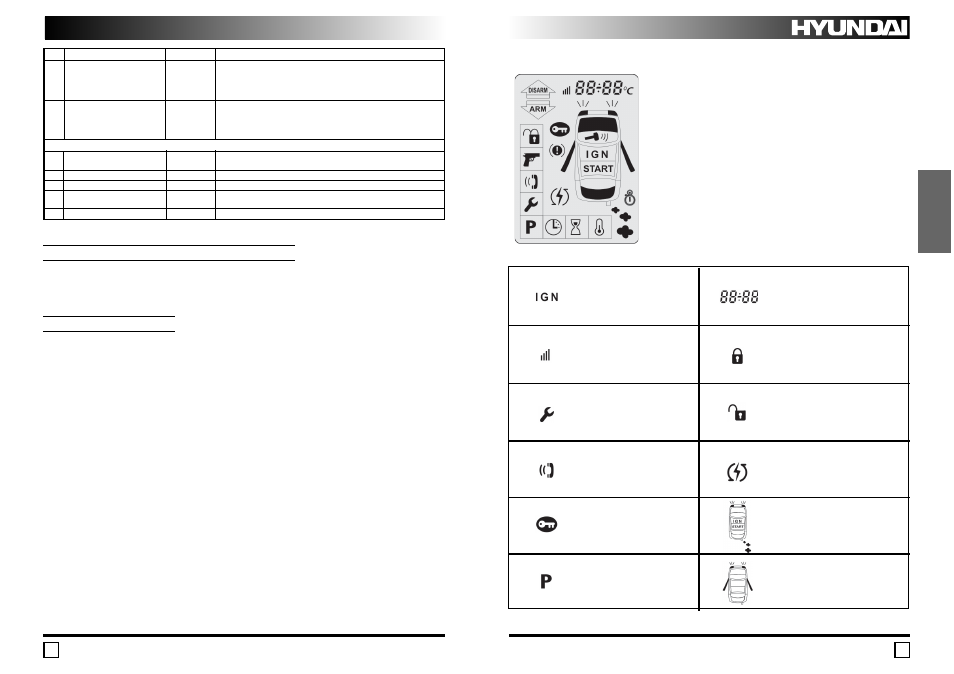

Символы ЖКИ дисплея
Индикатор часов
Замки дверей заперты
Замки дверей открыты
Включен режим
энергосбережения
Двигатель заведен (Охрана с
заведенным двигателем)
Открыта дверь
Включено зажигание
Передача команды
Valet режим
Тестовый режим
Включена функция
блокировки кнопок пульта
Таймер парковки
User’s Guide and Installation Manual
H-SS91
92
Power Immobiliser Relay
LED Output
Override Switch Input
Shock Senor and Optional Sensor
Inputs
RF Base Station Input/Output
Two Side Exited
Black Wires
Built in normally closed relay.
2 pin White Connector
2 pin White Connector
Two 4 pin White Connectors
4 pin Black Connector
N
Wire Destination
Wire Color
Note
Adjustment of the Sensors Sensitivity
To increase the sensitivity of the shock sensor and the optional sensor (if installed) turn the
adjusting lever clockwise, to reduce the sensitivity turn the adjusting lever counter clockwise.
System Verification
1. Connect the Car Battery
2. Check the following functions and features:
* Arm/Disarm
* Silent Arm/Silent Disarm
* Panic
* Shock Sensor and Optional Sensor Sensitivity
* Triggering the alarm by door, hood, and trunk open
* Non Triggering due to shaking hood and trunk cowls.
* Override Switch operation
* Central Door Lock operation
* Auxiliary Outputs and Inputs performance
* Auto Rearming, Passive Arming
* Valet Mode
* Engine Immobilisation
* Transmitter/Pager Range
* Remote Start System Operation
Other Connections
3
Programmable Output “ ”300 mA
4
Arm Output (programmable).
The mode operation of the Arm
Output you select with Installer’s
function 1 4.
White
Brown/White
Depend on setting of the Installer`s function 1 8 the output can operate as:
1. Latch Output
2. Brake/Clutch Output for the cars require the brake or clutch pedal
to be depressed to allow cranking the engine.
1. “ ”300 mA when Armed.
To control an extra normally closed blocking relay.
2. “ ”300 mA when Disarmed.
To control an extra normally opened blocking relay.
