Building In
A = Auxiliary burner
SR = Semi-rapid burner
R = Rapid burner
Dimensions are given in millimeters
Fig. 7

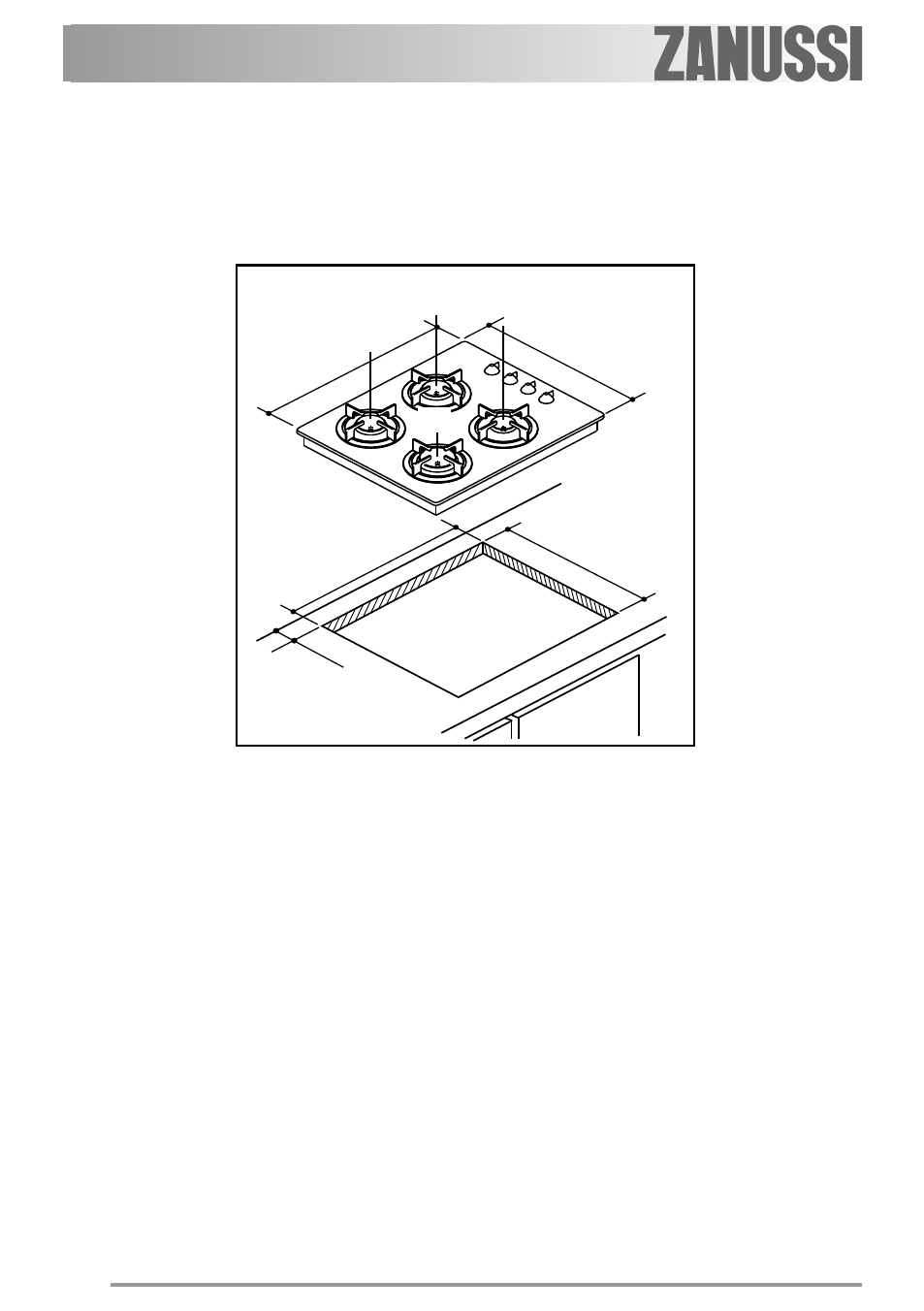

Cut Out Size
The dimensions of the cut-out are given in the picture.
The hob can be inserted in a built-in kitchen unit whose depth is between 550 mm and 600 mm.
The hobs dimensions are shown in Fig. 7.
The edge of the cut out must have a minimum distance from the rear wall of 55 mm.
If there are side walls, or sides of the furniture unit near the hob, the cut out edges must have a
minimum distance of 100 mm.
Hanging forniture units or hoods must be placed at 650 mm minimum from the hob.
550
470
580
510
55 min.
SR
SR
A
R
