The appliance is designed to be connected to 230 V monophase electricity supply.
The connection must be carried out in compliance with the laws and regulations in force.
Before the appliance is connected:
1) check that the main fuse and the domestic installation can support the load (see the rating label);
2) check that the power supply is properly earthed in compliance with the current rules;
3) check the socket or the double pole switch used for the electrical connection can be easily reached
with the appliance built in the forniture unit.
The appliance is supplied with a connection cable. This has to be provided with a proper plug, able to
support the load marked on the identification plate. The plug has to be fitted in a proper socket.
If connecting the appliance directly to the electric system, it is necessary that you install a double pole
switch between the appliance and the electricity supply, with a minimum gap of 3 mm. between the switch
contacts and of a type suitable for the required load in compliance with the current rules.
The connection cable has to be placed in order that, in each part, it cannot reach a temperature higher
than 90°C.
The brown coloured phase cable (fitted in the terminal block contact marked with "L") must always be
connected to the network phase.
Replacement of the voltage cable
The replacement of electric cable must be
carried out exclusively by the technical
assistance centre or by personnel with
similar competencies, in accordance with
the current regulations.
Only cable type H05V2V2-F T90 must be used. The
cable section must be suitable to the voltage and the
working temperature.
The yellow/green earth wire must be approximately

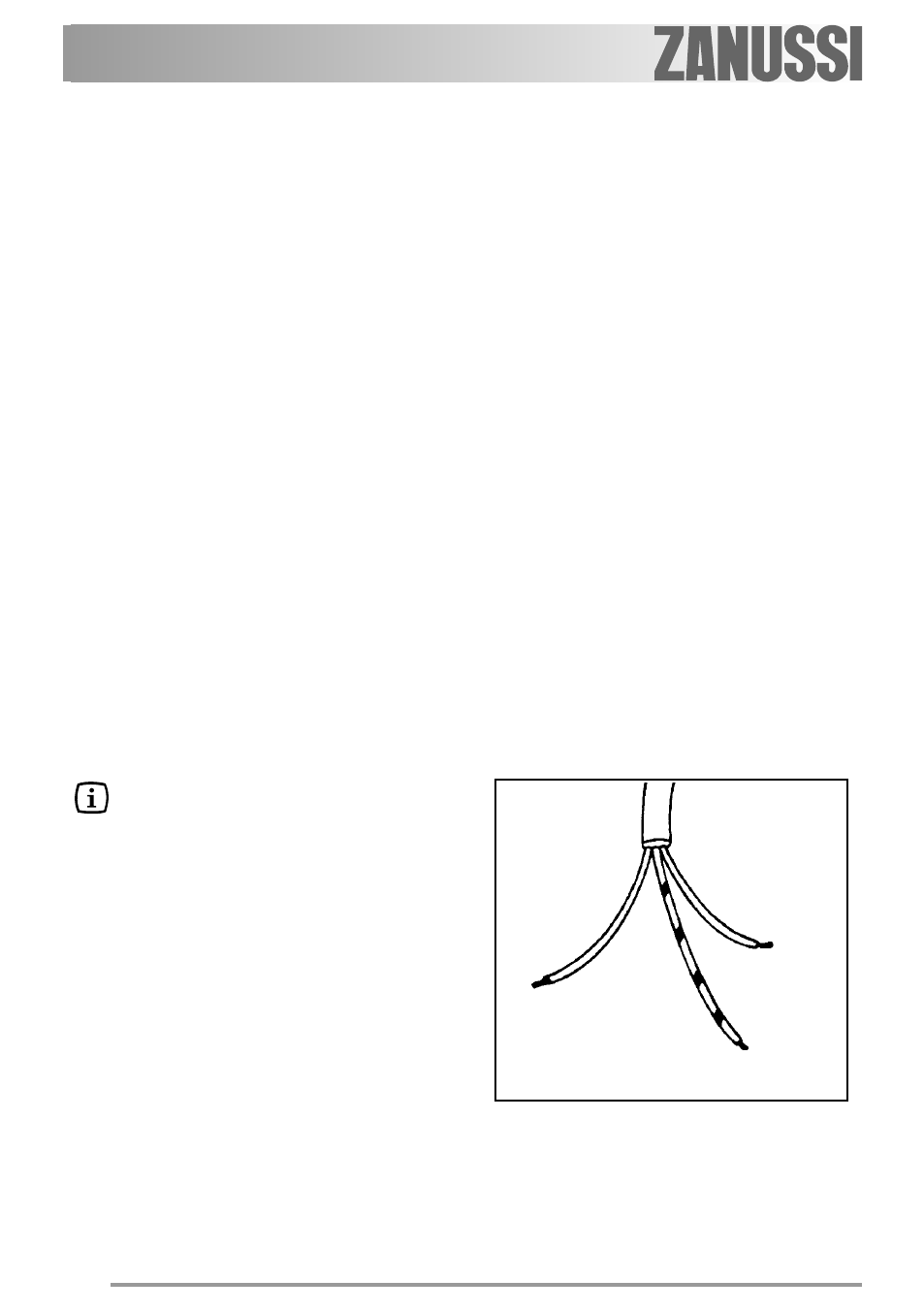

2 cm longer than the phase wires (Fig. 4).
Electrical Connection
Fig. 4
Neutral
Earth (yellow/green)
