9

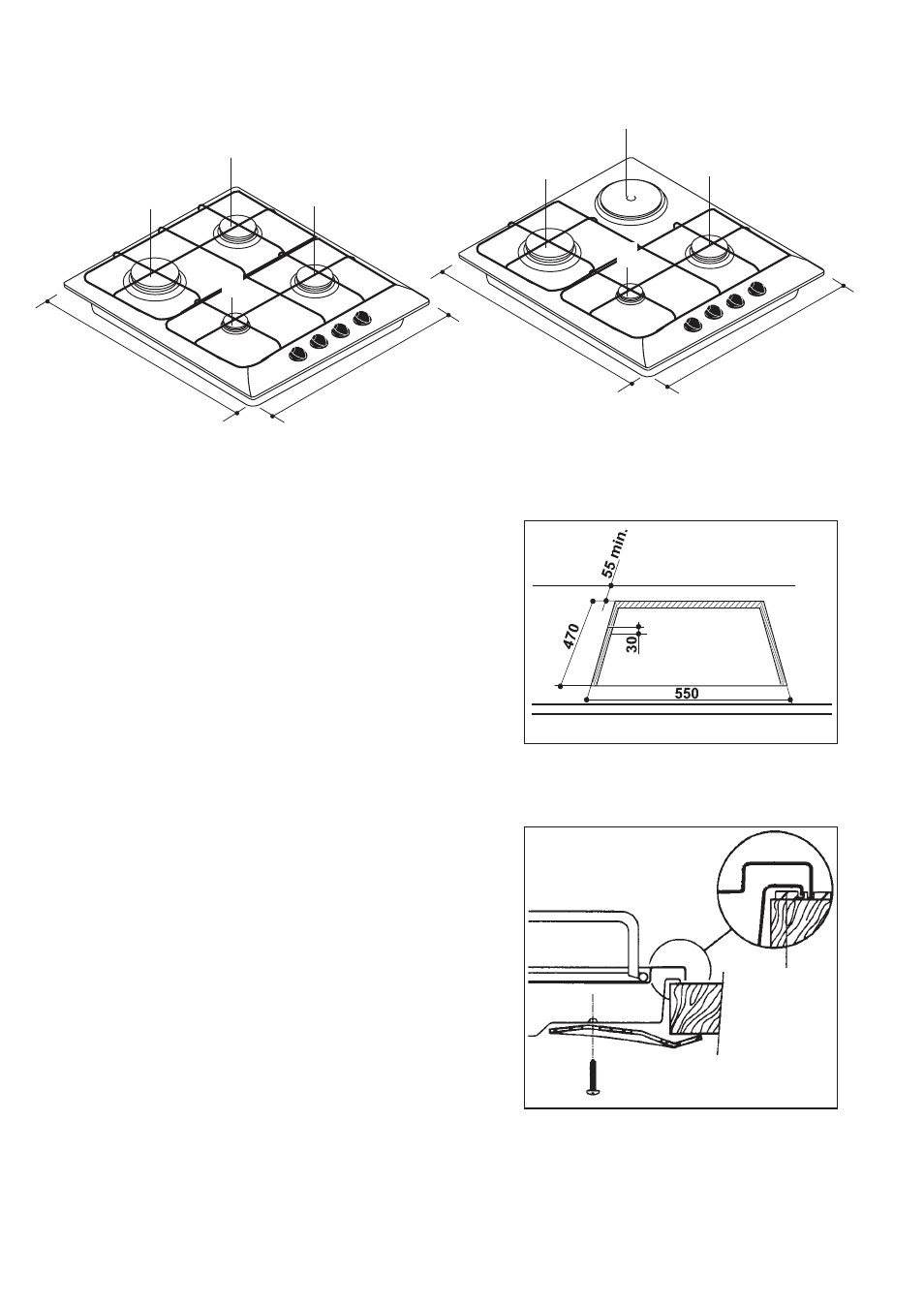

These hobs can be inserted in a built-in kitchen unit
whose depth is between 550 and 600 mm. The hobs
dimensions are shown in the relevant diagram.
The edge of the cut out must have a minimum distance
from the rear wall of 55 mm.
If there are side walls, or sides of the furniture unit near
the hob, the cut out edges must have a minimum
distance of 100 mm.
Hanging forniture units or hoods must be placed at 650
mm. minimum from the hob.
A = Auxiliary burner
SR = Semirapid burner
R = Rapid Burner
PE = Electric hotplate
Fitting the hob to the worktop
The hobs can be installed in a kitchen unit with an
opening for insertion whose dimensions are shown in
Fig. 9. To install the hob, proceed as follows:
1) Place the sealing gasket (supplied with the hob) on
the edges of the cut out: place it exactly on the front
and rear edge, taking care that the sealings meet
without overlapping;
2) Fix the hob with the relevant screws (Fig. 10). The
traction of the screws is able to trace the sealing, any
excess of which can be easily removed.
The edge of the hob forms a double labyrinth seal which
provides a total guarantee against infiltration of liquids.
Fig. 9
Fig. 10
a) Sealing gasket
Dimensions are given in millimeters
Building In
FO 2098
FO 0199
a
500
580
SR
SR R
A
500
580
PE
SR R
A
Mod. ZGL 646 Mod. ZXL 636
