Инструкция по эксплуатации Saturn ST-FP1096 Astra
Страница 2
2
3
GB
Meat Grinder
Dear Buyer!
We congratulate you on having
bought the device under trade
name “Saturn”. We are sure that
our devices will become faithful
and reliable assistance in your
housekeeping.
Avoid
extreme
temperature
changes.
Rapid
temperature
change (e.g. when the unit is
moved from freezing temperature
to a warm room) may cause con-
densation inside the unit and a
malfunction when it is switched
on. In this case leave the unit at
room temperature for at least 1.5
hours before switching it on.If the
unit has been in transit, leave it
indoors for at least 1.5 hours be-
fore starting operation.

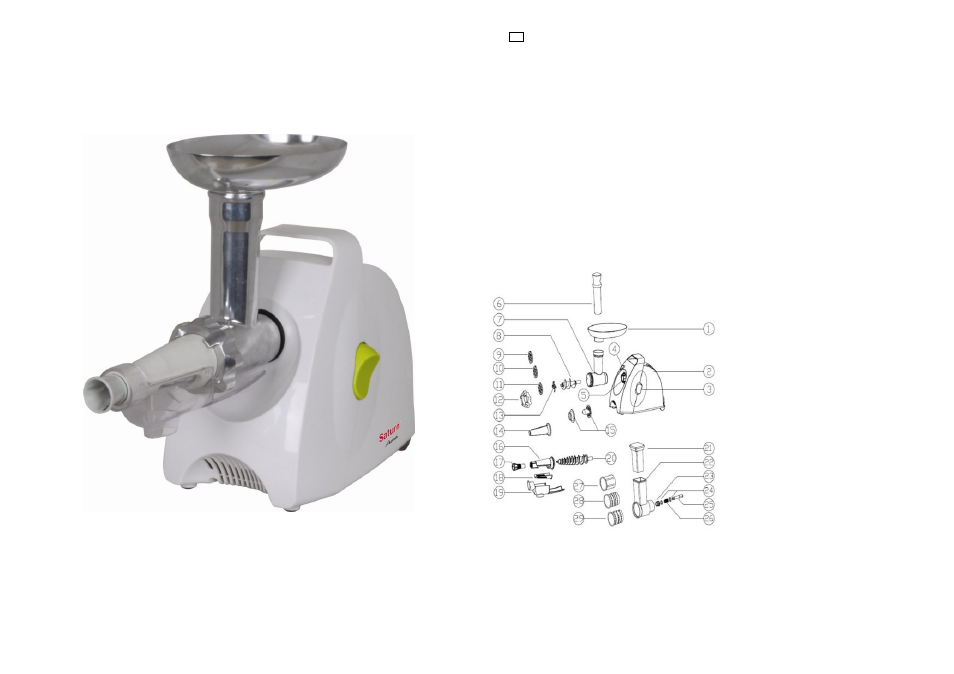

DESCRIPTION
1. Hopper plate
2. Motor housing
3. ON/OFF/ Reverse switch
4. Locking knob hole
5. Locking knob
6. Food pusher
7. Head
8. Feed screw
9. Cutting plate (fine)
10. Cutting plate (medium)
11. Cutting plate (coarse)
12. Fixing ring
13. Cutting blade
14. Sausage attachment
15. Kebbe attachment
16. Tomato attachment bracket
17. Adjustable screw
18. Sreen
19. Tomato attachment snake
20. Dam-board
21. Vegetable pusher
22. Vegetable cutting head
23. Vegetable cutting of tooth sets
24. Bushing
25. Shuan deduction for the sliced tube
26. Spring
27. Strip cutter
28. Shredded cutter
29. Slice cutter
IMPORTANT SAFEGUARDS
u
Household use only. Do not use for
industrial purpose.
u
Unplug from outlet when assem-
bling and disassembling the unit.
u
Close supervision is necessary,
when any appliance is used near chil-
dren.
u
When carrying the unit, be sure to
hold the motor housing with both
hands. Do not carry the unit by holding
only the hopper plate or head.
u
Do not fix the cutting blade and
cutting plate, when using kebbe at-
tachment.
u
Never feed food by hand. Always
use food pusher.
u
Do not grind hard food such as
bones, nuts, etc.
u
Do not grind ginger and other
materials with hard fiber.
u
Continuous
running
of
meat
grinder should be not more than 10
minutes with the following 10 minutes
interval for motor cooling.
u
Reverse function is prohibited
while the appliance is operating (For
example switch “ON” knob to “R” knob
or on the contrary), wait at least one
minute until grinder has come to a
complete stop. Otherwise it may cause
an abnormal noise, vibration or a transi-
tory electric spark in the appliance. It
could result easily damage to appliance
and make the user frightened.
u
After use, there would be a little
To avoid jamming, do not force to oper-
ate the unit with excessive pressure.
When the circuit breaker activates, do
