Chest Press Assembly Guide: Assembling the Equipment
12
Attaching the Back Pads
Note: The back pads are common to several models of exercise equipment, so
they have more screw holes than you can use in this procedure.
To attach the back pads:
1. Place the back pad against the center upright assembly so that the screw
holes on the assembly line up with the outermost screw holes on the pad,
as shown in the following figure.

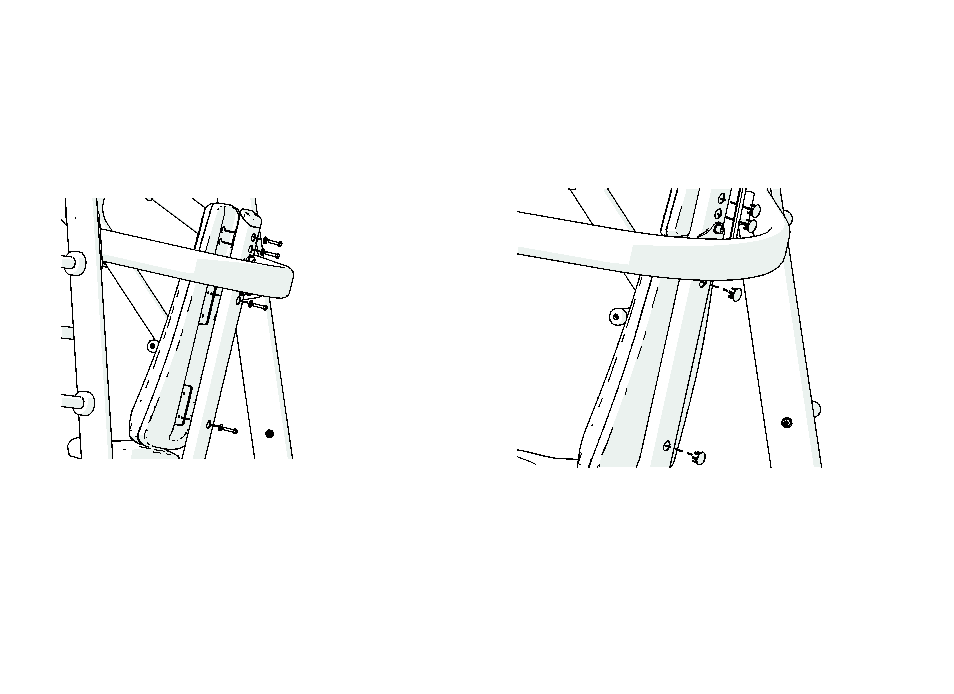

Figure 8: Back pad attachment
Important: In the following step, be careful not to drop screws or washers into
the center upright. Inserting each screw into a socket wrench, then using the
wrench to position and tighten the screw, is recommended.
2. Place a ⁵₁₆-inch flat washer over a ⁵₁₆-inch x 1¹₂-inch hex head screw, then
insert the screw through a screw hole in the center upright assembly and
into the corresponding hole in the pad. Partially tighten the screw. Repeat
this step to insert the other screw and washer.
3. Place the head pad against the center upright assembly, so that the screw
holes on the assembly and the pad line up.
4. Repeat step 2 to attach the head pad to the center upright assembly.
5. Position the back pads if necessary, then tighten all four screws
completely.
6. Press frame plugs into the screw hole openings on the center upright
assembly, as shown in the following figure.
Figure 9: Frame plug installation
