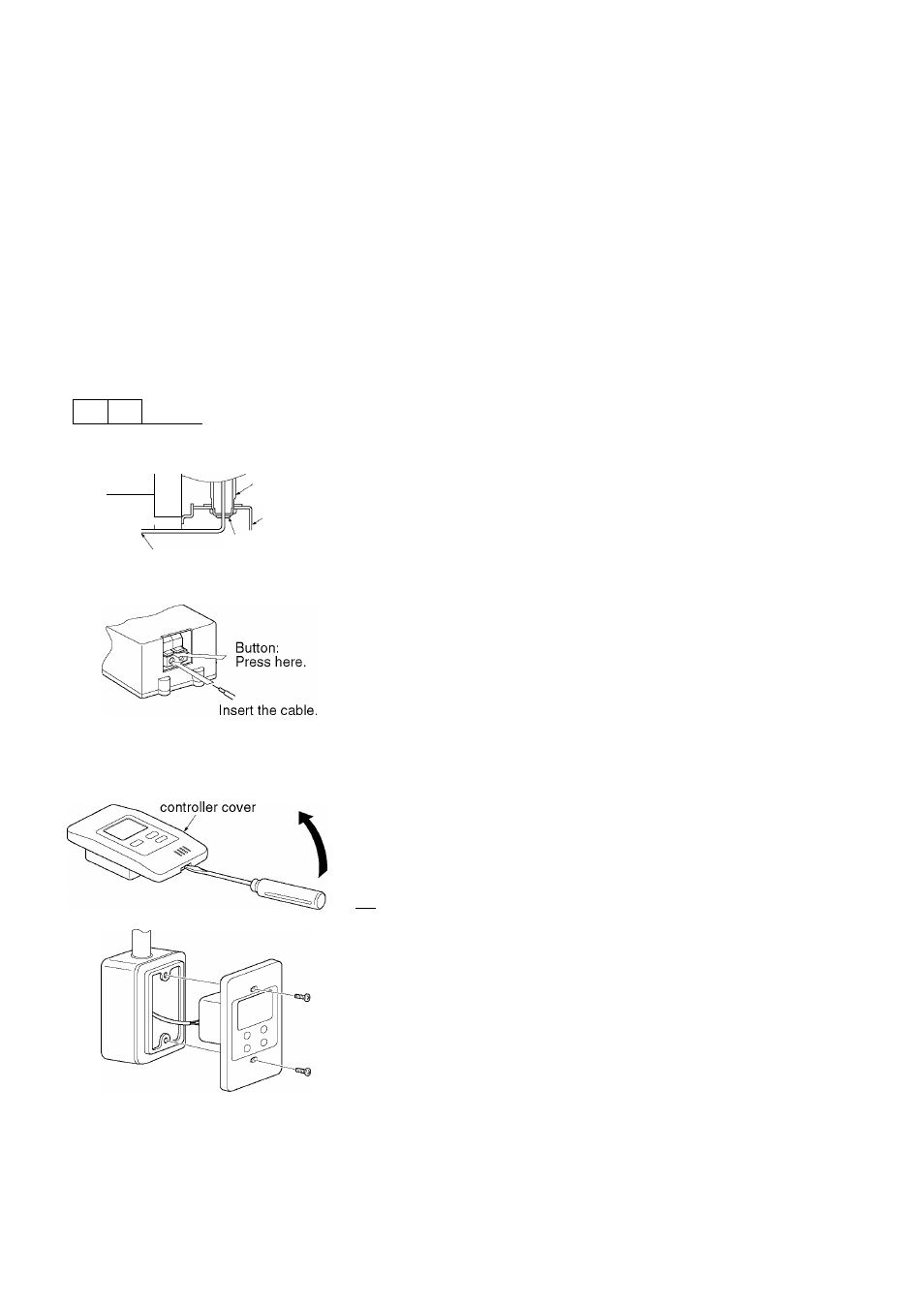

14.2 Installing the Lossnay M-NET Remote Controller
14.2.1 Mount the switch box.
Switch box
Outline of Lossnay
remote controller
40 mm or more
Projecting
object such as
a stud
1. Install the switch box (purchased separately) as explained below.
Note:
• Be sure to install the switch box with the clearance shown in the illustration at
the left. (Check the space between the unit and any projections, such as a
^
stud.)
• Leave a space of 120 mm or more below the Lossnay M-NET remote controller
so that a screwdriver can be used.
2. Purchase the thin copper wiring conduit, lock nuts and bushings separately.
14.2.2 Install the Lossnay M-NET Remote ControMer.
1. Pull out approximately 80 mm of cable from the wall and remove the insulation
Units
:
mm
at the end.
11
10
wire
tion
Wall
80
Wiring plpe
One switch box
(with cover)
Cable
Seal with putty
2. Use putty to seal the cable hole in order to prevent insects from damaging the
wiring and to prevent condensation on the Lossnay M-NET remote controller
circuit board. If this hole is not sealed well, the Lossnay M-NET remote con
troller circuit board may be damaged.
3. Connect the cable to the terminal board at the bottom rear of the Lossnay M-
NET remote controller unit.
•
The cable does not have polarity.
•
When connecting stranded cable, hold down the tab on the terminal board
while inserting the cable.
•
The cable connects to the main terminal board when it is inserted into the bot
tom terminal.
•
When disconnecting the cable, hold down the tab while pulling out the cable.
•
After inserting the cable, slightly tug on it to check that it does not easily dis
connect. If the cable is not securely connected, a short-circuit or malfunction
may occur.
Lossnay M-NET remote
4. Remove the Lossnay M-NET remote controller cover using a standard screw
driver. Attach the Lossnay M-NET remote controller unit to the switch box
using the two enclosed cross-recessed pan head screws. Use a standard
screwdriver with a blade that is 4 mm or wider to remove the cover.
/ty CAUTION:
•
Forcing off the cover using a screwdriver that is less than 4 mm wide may
result in damage to the equipment or injuries.
•
Attach the Lossnay M-NET remote controller to a level surface. Do not over
tighten the screws. Tight screws could damage or deform the case.
