Connections
Case 2 : Connecting to an Audio
System (Dolby Digital, DTS
Amplifier) - Better Quality
Using an optical cable, connect the DIGITAL
AUDIO OUT (OPTICAL) terminal on the
bottom of the product to the DIGITAL AUDIO
IN (OPTICAL) terminal of your Amplifier.
Using the video signal cable(s), connect the
HDMI or A/V OUT terminals on the bottom
of the product to the HDMI or VIDEO IN
terminal of your TV. (See pages 20~22)
Turn on the product, TV and Amplifier.
Press the input select button of the Amplifier
to select the external input in order to hear
sound from the product. Refer to your
Amplifier’s user manual to set the Amplifier’s
audio input.
1.
2.
3.
4.
Case 3 : Connecting to an Audio
System (2 Channel Amplifier)
- Good Quality
Using the audio/video cables, connect the
A/V OUT (yellow) terminals on the bottom of
the product to the AUDIO IN (red and white)
terminals of your Amplifier.
Using the video signal cable(s), connect the
HDMI or A/V OUT terminals on the bottom
of the product to the HDMI or VIDEO IN
terminal of your TV. (See pages 20~22)
Turn on the product, TV and Amplifier.
Press the input select button of the Amplifier
to select the external input in order to hear
sound from the product. Refer to your
Amplifier’s user manual to set the Amplifier’s
audio input.
1.
2.
3.
4.
NOTE
If you connect usiing a digital optical cable (Case 2), you will hear discs with PCM audio soundtracks through the front
two speakers only.
✎
▪
White
Red

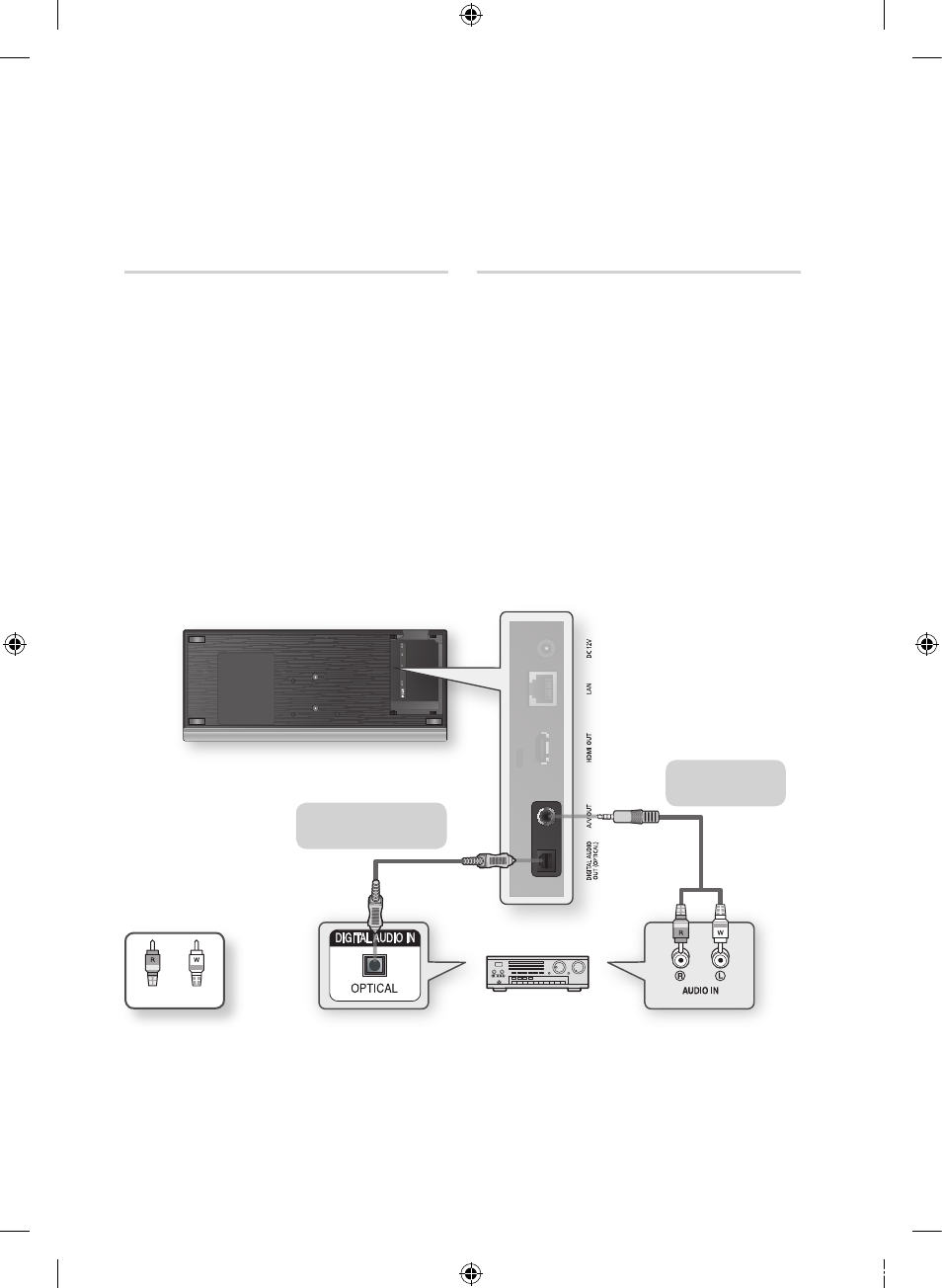

Case 2 : Optical cable
(not included)
Case 3 : Audio/
Video cable
